Hi-Pot Series
SCOPE offers HPT Series of High Voltage Test Sets capable of injecting variable High Voltage from zero to maximum rated output voltage continuously. Wide range Hi-Pots, up to 50kV, are available in different output options such as power frequency AC or DC or AC-DC Combined. HPT Series is specifi cally designed for safe and accurate measurement of leakage current to evaluate insulation integrity of transformers, motors, insulators, cables etc. Years of Design, engineering and manufacturing experience have made HPT Series of High Voltage Testers the most durable, easily operated and best-designed sets in the segment.

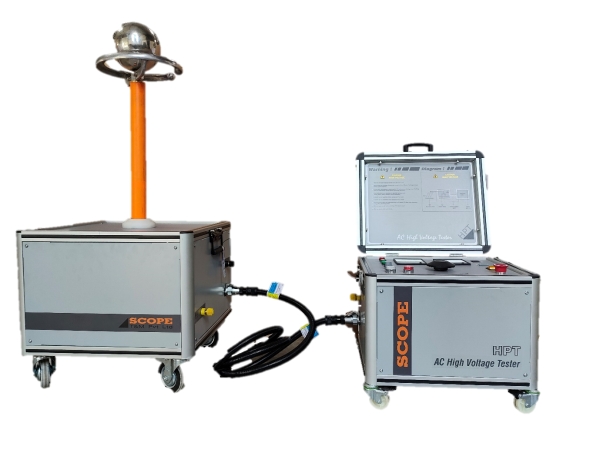

The product was designed considering the importance of safety of the operator and thus we provide independent Control Unit & High Voltage Transformer. The kit has various interlock to avoid any kind of accident while doing the high voltage test set.
Features
- User friendly and simple operation
- Compact, Lightweight and Housed in rugged transport case
- Ideal choice for testing dielectric withstanding capacity of insulation
- Available with the option of Combine or Separate Control Unit
- Analog or Digital meters is provided for displaying output voltage in kV and current in mA
- Different Protections / Interlocks to ensure user safety such as Variac Zero Interlock, Emergency Stop,Overcurrent Protection, Short Circuit Protection, Earth OK Interlock, Input Supply Protection etc.
- User-friendly indications such as Power ON, HV ON-OFF, Earth OK, Over / Under Voltage etc.
- Optional Timer, Foot / Hand Switch and Beacon / Buzzer for additional Safety
- Protective terminals to prevent any accidental contact with HV
- Automatic discharge upon shutdown
Specifications
| Model | Output Voltage |
Max Output Current Option (Imax) |
|||||
| AC | DC | 10mA | 20mA | 25mA | 50mA | 100mA | |
| HPT 3A | 3kV | - | ✔ | ✔ | ✔ | ✔ | ✔ |
| HPT 3D | - | 3kV | ✔ | ✔ | ✔ | ✔ | ✔ |
| HPT 3C | 2kV | 3kV | ✔ | ✔ | ✔ | ✔ | ✔ |
| HPT 5A | 5kV | - | ✔ | ✔ | ✔ | ✔ | ✔ |
| HPT 5D | - | 5kV | ✔ | ✔ | ✔ | ✔ | ✔ |
| HPT 5C | 3kV | 5kV | ✔ | ✔ | ✔ | ✔ | ✔ |
| HPT 10A | 10kV | - | ✔ | ✔ | ✔ | ✔ | ✔ |
| HPT 10D | - | 10kV | ✔ | ✔ | ✔ | ✔ | ✔ |
| HPT 10C | 7kV | 10kV | ✔ | ✔ | ✔ | ✔ | ✔ |
| HPT 15A | 15kV | - | ✔ | ✔ | ✔ | ✔ | - |
| HPT 15D | - | 15kV | ✔ | ✔ | ✔ | ✔ | - |
| HPT 15C | 10kV | 15kV | ✔ | ✔ | ✔ | ✔ | - |
| HPT 20A | 20kV | - | ✔ | ✔ | ✔ | ✔ | - |
| HPT 20D | - | 20kV | ✔ | ✔ | ✔ | ✔ | - |
| HPT 20C | 14kV | 20kV | ✔ | ✔ | ✔ | ✔ | - |
| HPT 25A | 25kV | - | ✔ | ✔ | ✔ | ✔ | - |
| HPT 25D | - | 25kV | ✔ | ✔ | ✔ | ✔ | - |
| HPT 25C | 17kV | 25kV | ✔ | ✔ | ✔ | ✔ | - |
| HPT 30A | 30kV | - | ✔ | ✔ | ✔ | - | - |
| HPT 30D | - | 30kV | ✔ | ✔ | ✔ | - | - |
| HPT 30C | 21kV | 30kV | ✔ | ✔ | ✔ | - | - |
| HPT 40A | 40kV | - | ✔ | ✔ | ✔ | - | - |
| HPT 40D | - | 40kV | ✔ | ✔ | ✔ | - | - |
| HPT 40C | 28kV | 40kV | ✔ | ✔ | ✔ | - | - |
| HPT 50A | 50kV | - | ✔ | ✔ | ✔ | - | - |
| HPT 50D | - | 50kV | ✔ | ✔ | ✔ | - | - |
| HPT 50C | 35kV | 50kV | ✔ | ✔ | ✔ | - | - |
